Motor
Motor Type:  AC Induction
Motor Power:  11.7 hp (8.7 kW)
Motor Controller:  235 amp AC controller
Power System Type:  56.7V DC
Performance
Top Speed Level Ground: 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph)
Electric
Electrical:  56.7V
Battery

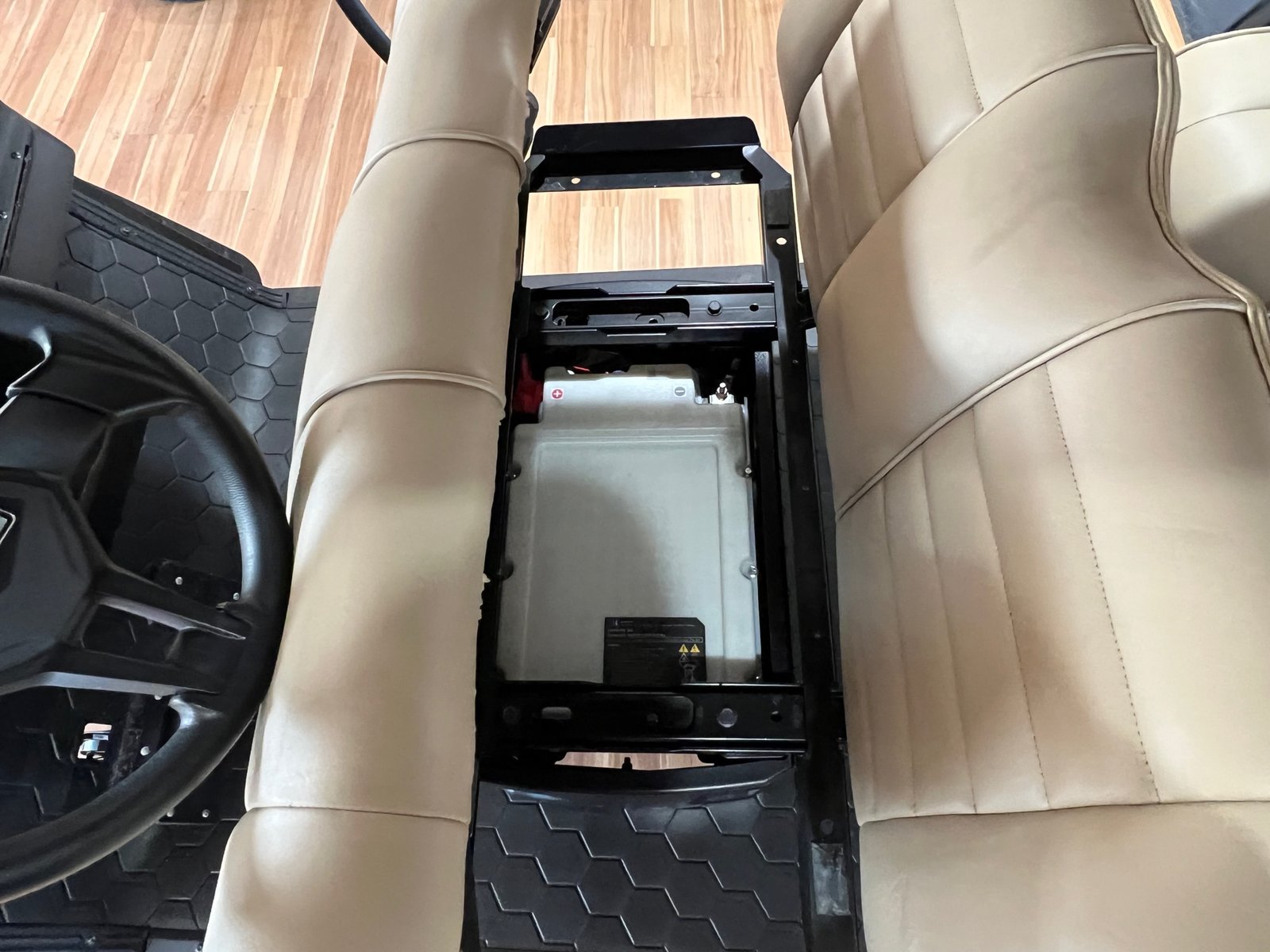

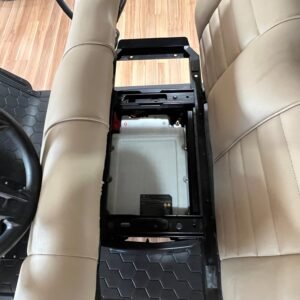

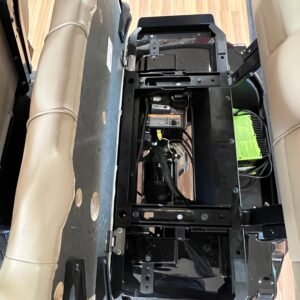

Battery:  Single, 56.7V Li-Ion Composite Module (Standard Configuration)
Battery Charger Type:  56.7V 350 W Domestic Charger, 3m Charging Cord
Drivetrain
Drivetrain:  Motor Shaft Direct Drive
Transmission:  Differential with Helical Gears

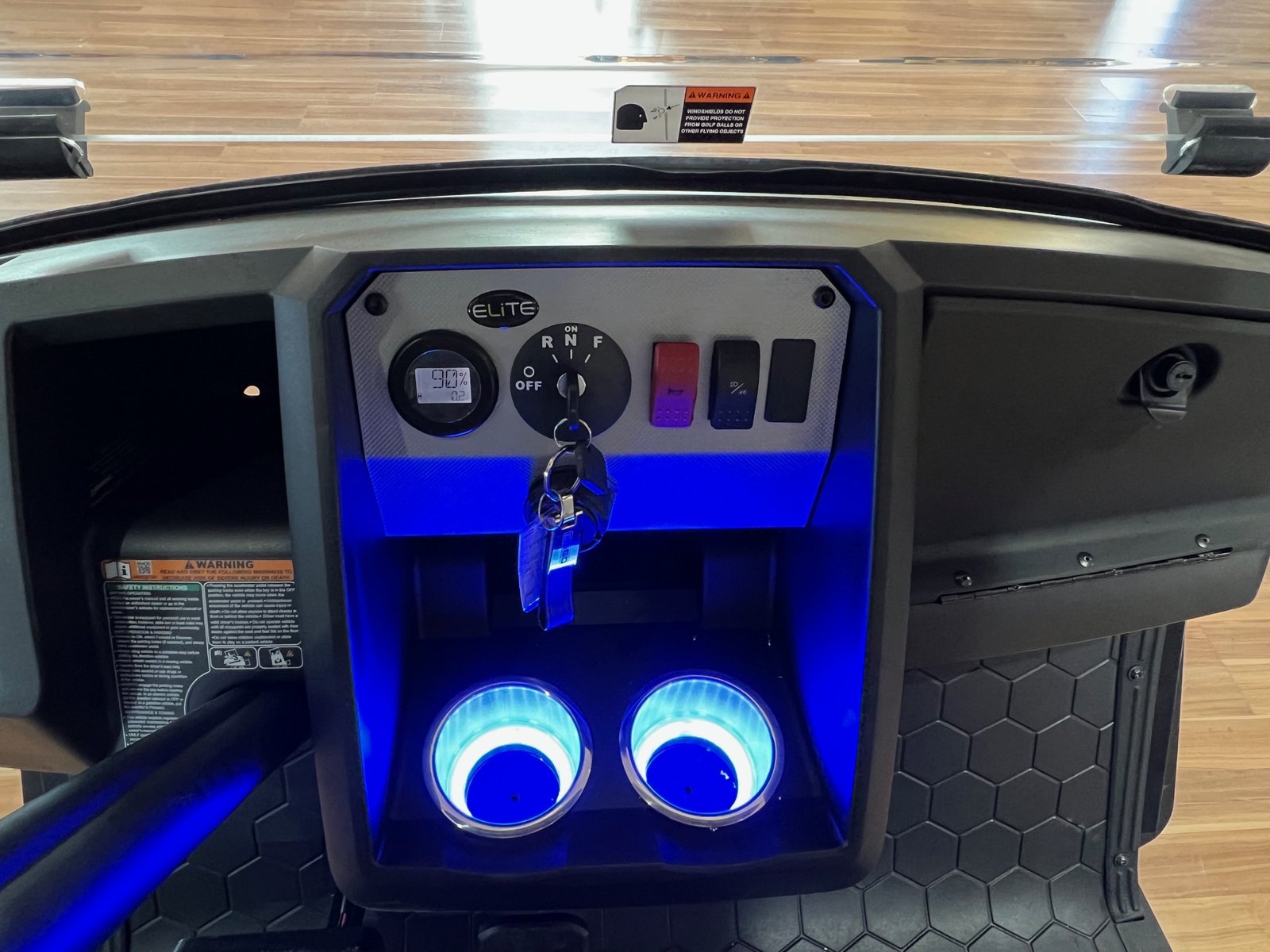

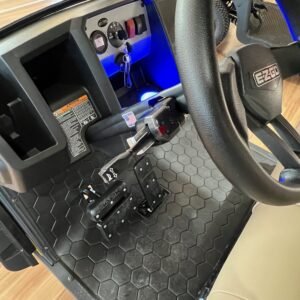

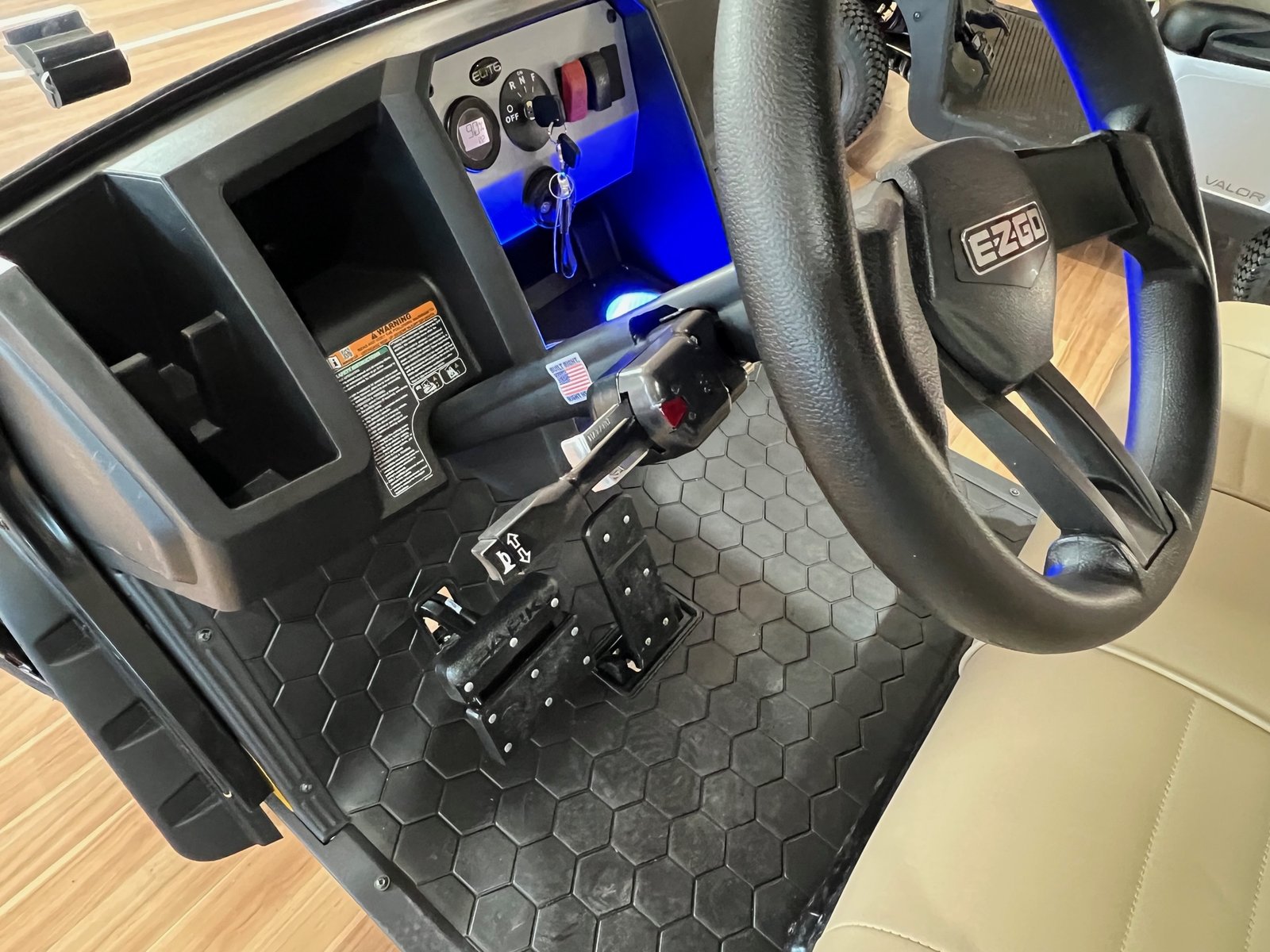

Gears Selection: Dash Mounted FNR/Key Switch
Axle Capacity, Rear Ratio: 16.99:1 (Forward)
Steering:  Self-Compensating Reduction Rack and Pinion
Chassis
Chassis Front Body & Finish: Injection Molded TPO | Back Body & Finish: Thermo form ABS
Frame Type:  Welded Steel with Dura Shield Powder Coat
Suspension
Suspension:  Leaf Springs with Hydraulic Shock Absorbers
Brakes
Brake System Type:  Service: Dual rear wheel mechanical self-adjusting drum
Parking Brake:  Self-compensating, single point engagement
Wheels & Tires
Front WheelTrack:  37.5 in (95 cm)
Rear WheelTrack:  39 in (99 cm)

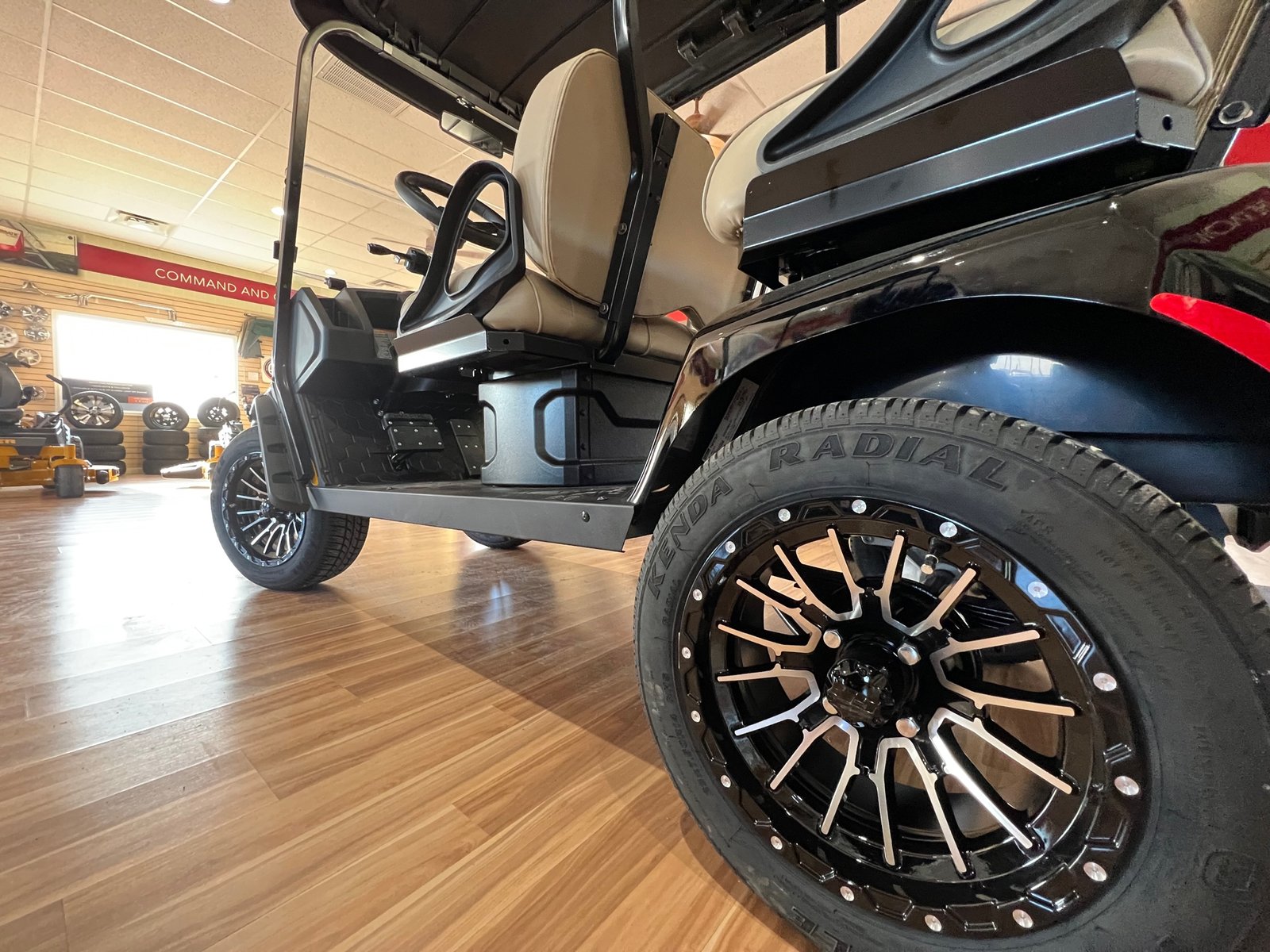

Front Tire:  Paramount M/T 23×10-14
Rear Tire:  Paramount M/T 23×10-14
Dimensions
Dimensions:  Outside Clearence Circle: 25.7 ft (7.83 m)
Overall Length:  106.5 in (271 cm)
Overall Width:  48 in (122 cm)
Overall Height:  W/o roof: 54.5 in (138cm) | w/ roof: 78 in (198 cm)
Wheelbase:  76 in (193 cm)
Ground Clearance@ Differential: 7 in (18 cm)
Turning Radius: 12.85 ft (3.92m)
Capacities
Seating Capacity:  4-passenger
Cargo Capacity:  800 lb (364 kg) | Rear Cargo Rack Load Capacity: 100 lb (45.6 kg)
Storage Capacity:  DASH/ IP: 1123 in²
Weights
Dry Weight:  854 lb (387 kg) (without batteries)
Curb Weight:  900 lb (408 kg)
Color
Colors: Slate
Color Option Available Seat: Gray on Black | Available Premium Seat: Black, Mushroom, Gray
